Carbide Cutting Inserts
SPMG PG INSERT
DESKAR
SPMG PG INSERT
MIling Insert
Technical Specifications & Dimensions
| Designation | Inscribed Circle (IC) | Thickness (S) | Typical Drill Diameter Range |
|---|---|---|---|
| SPMG 050204 PG LF6118 | 5.0 mm | 2.38 mm | 12 mm - 15 mm |

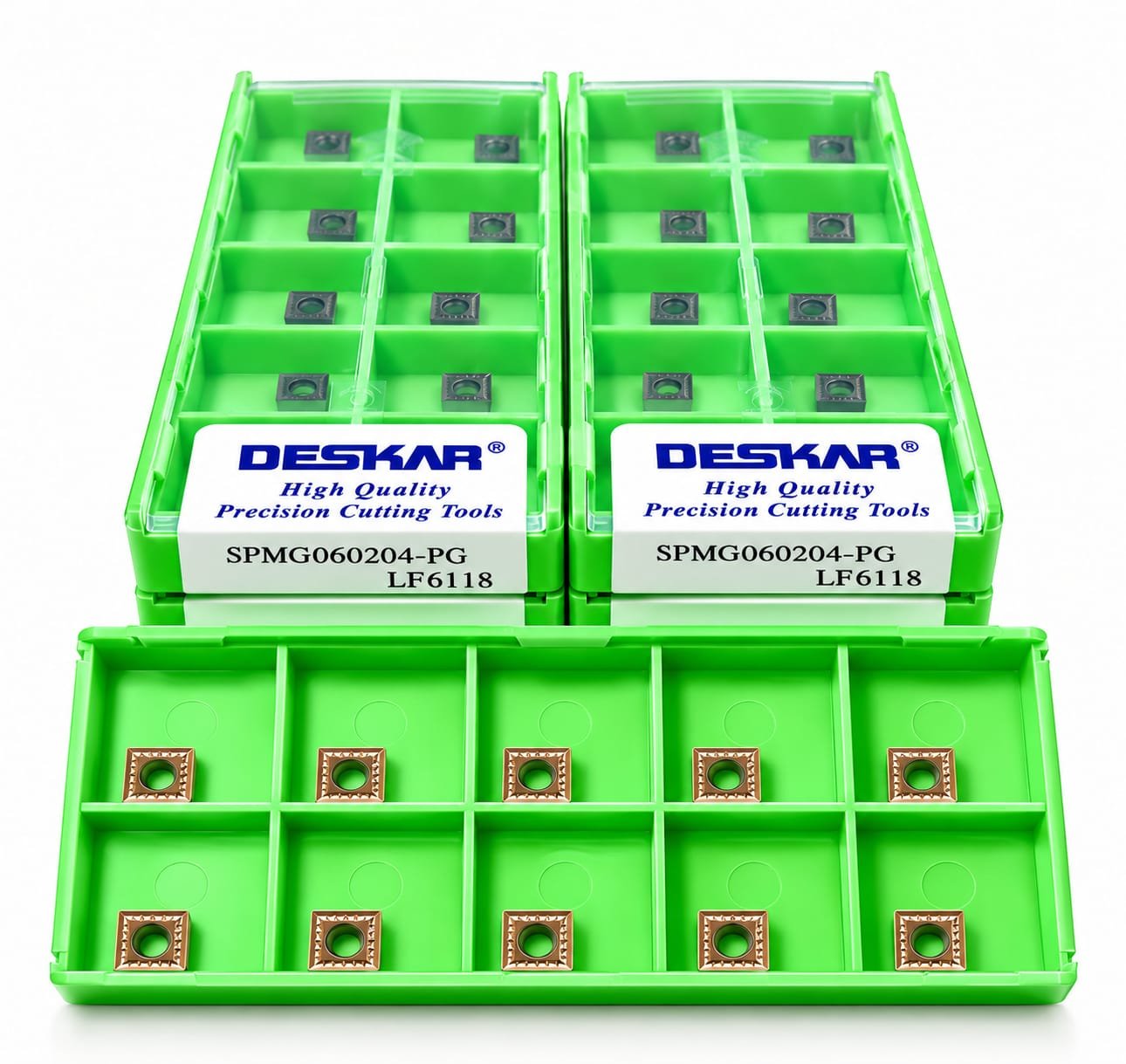

| SPMG 060204 PG LF6118 | 6.35 mm | 2.38 mm | 16 mm - 19 mm |

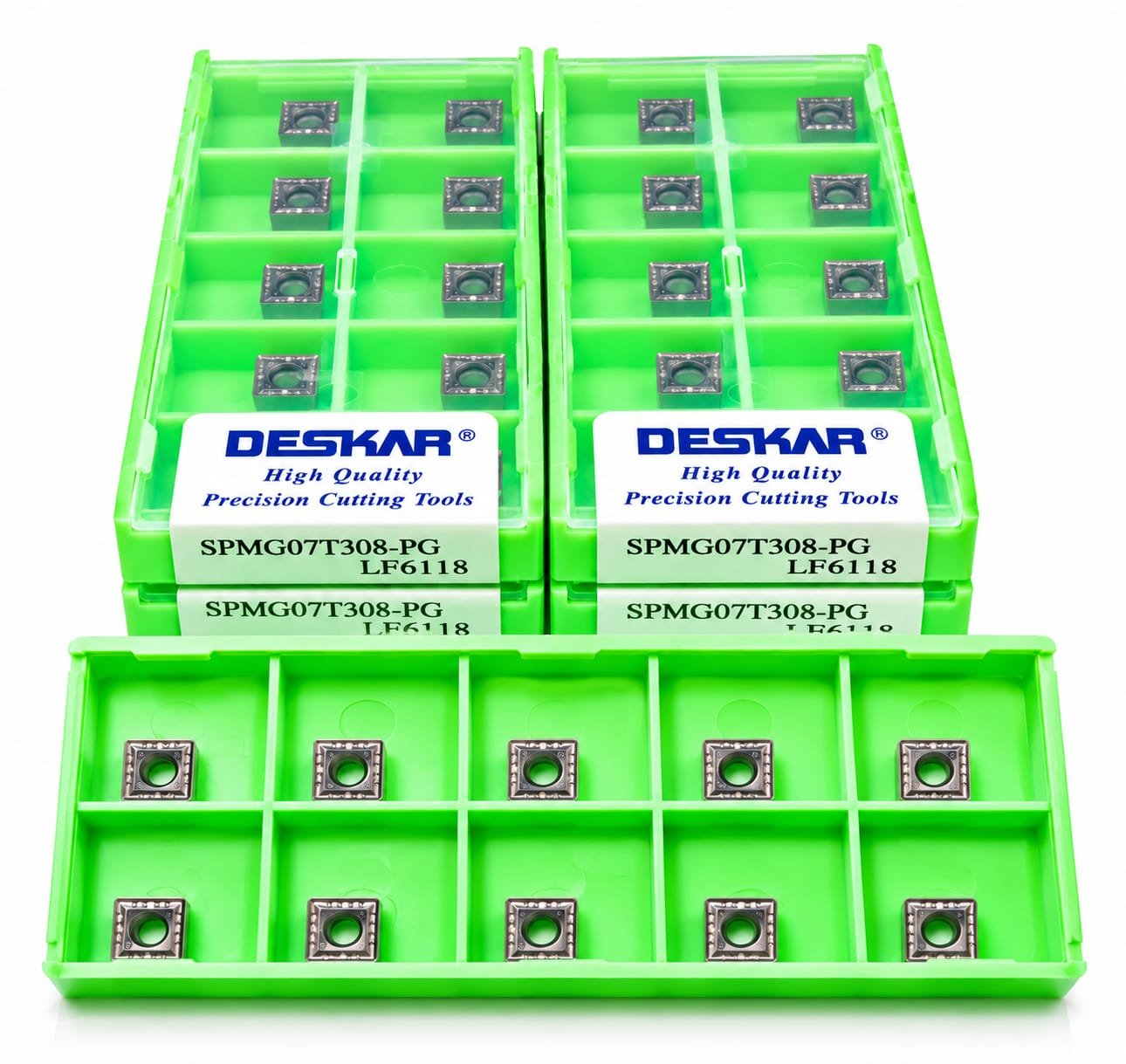

| SPMG 07T308 PG LF6118 | 7.94 mm | 3.18 mm | 20 mm - 24 mm |

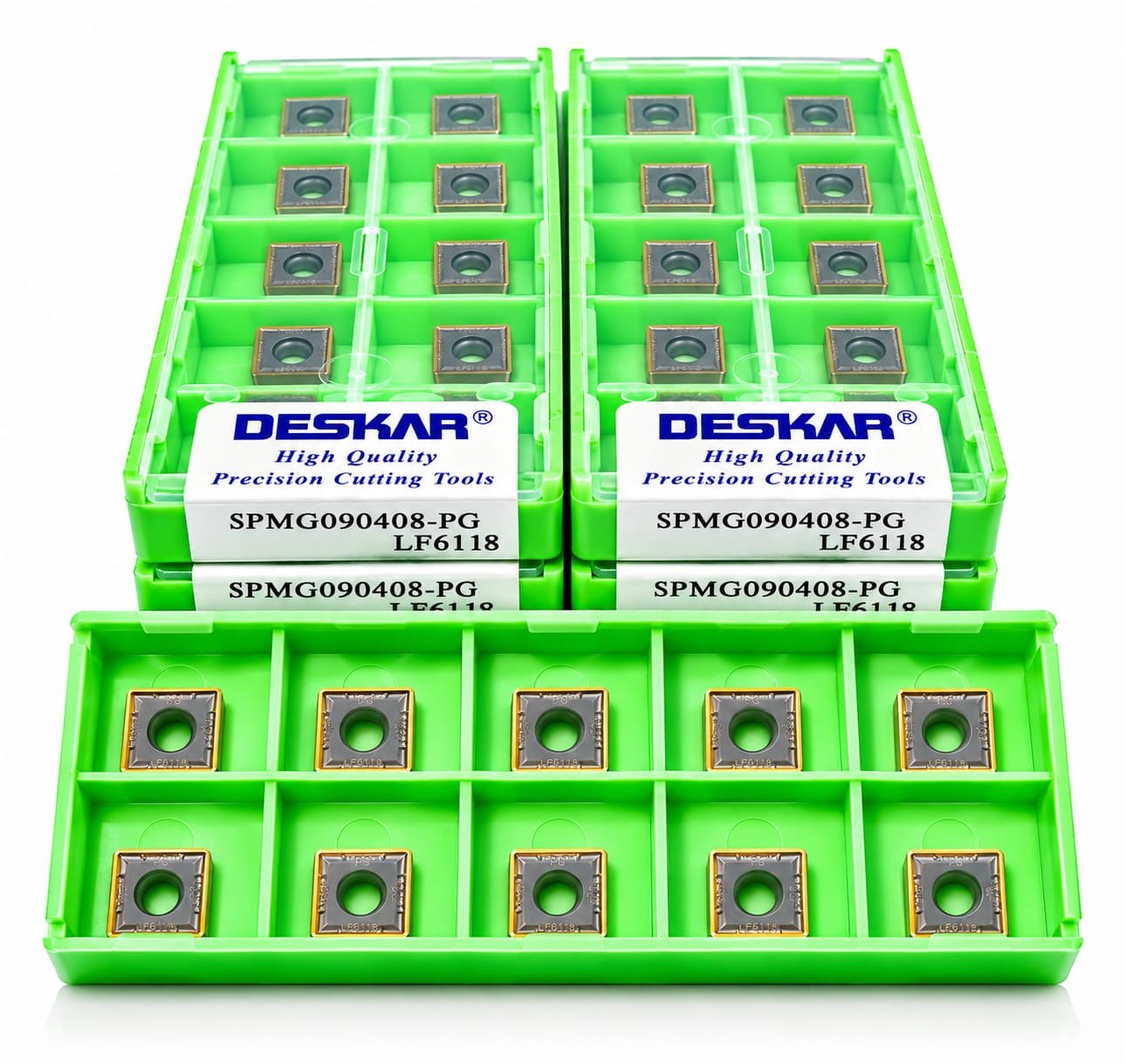

| SPMG 090408 PG LF6118 | 9.525 mm | 4.30 mm | 25 mm - 30 mm |

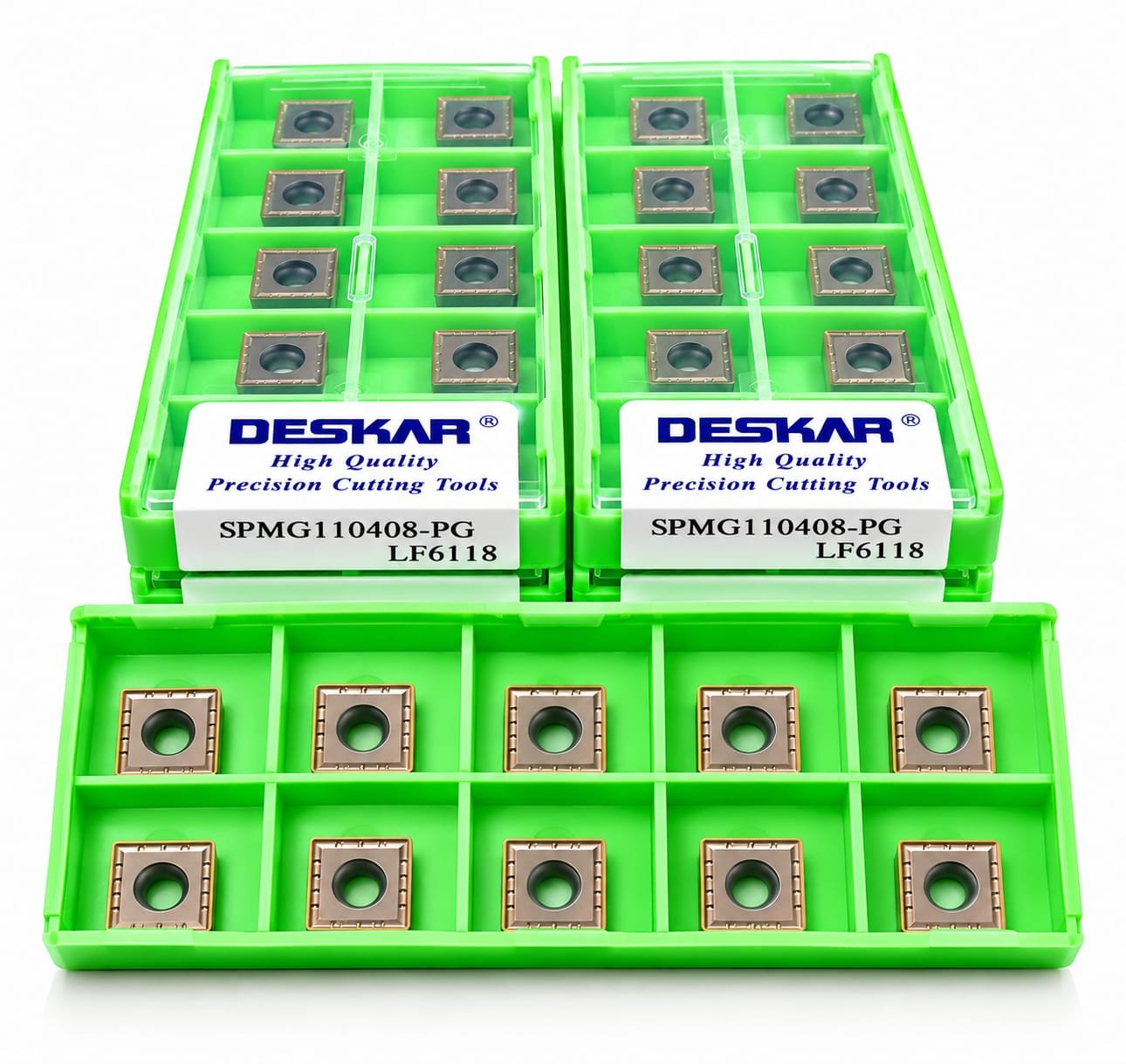

| SPMG 110408 PG LF6118 | 11.50 mm | 4.76 mm | 31 mm - 40 mm |
| SPMG 140512 PG LF6118 | 14.00 mm | 5.50 mm | 41 mm + |
